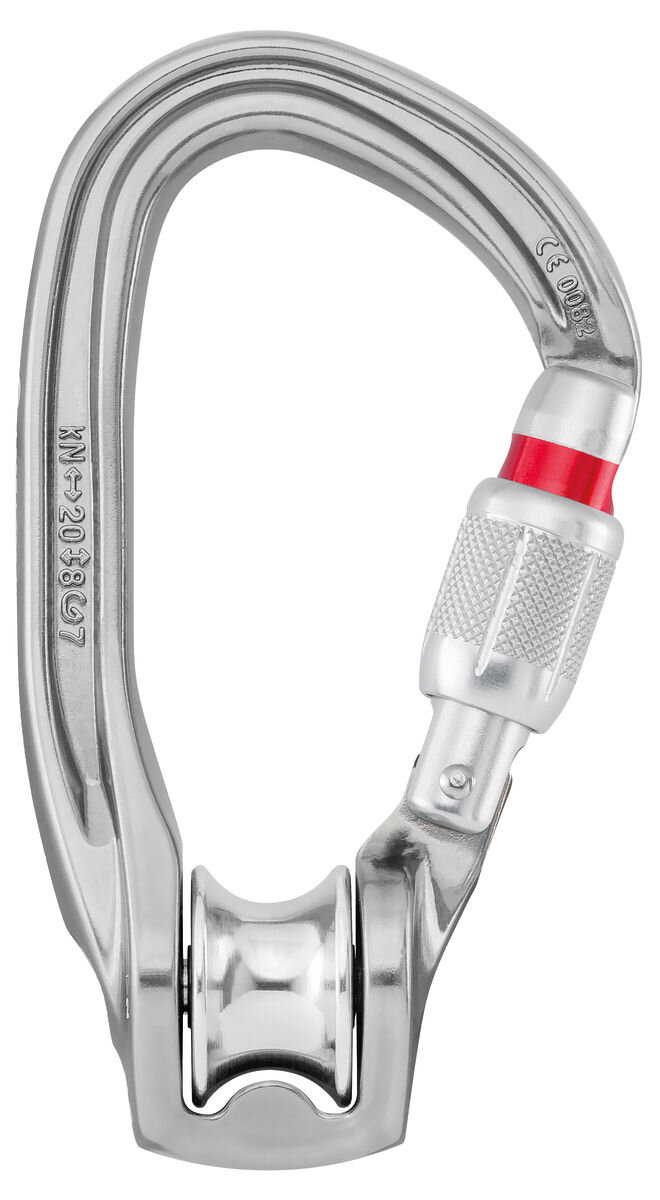

ROLLCLIP Z
Pulley-carabiner that facilitates installation on anchors and devices
ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate the installation of anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.
Pulley-carabiner that facilitates installation on anchors and devices
ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate the installation of anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.
Pulley-carabiner that facilitates installation on anchors and devices
ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate the installation of anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.
Detailed description
Easier handling:
- sheave mounted on sealed ball bearings for excellent efficiency
- gate opening on the non-pulley side, to facilitate installation on devices
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
H cross-section of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
Two locking systems available:
- TRIACT-LOCK: automatic locking with triple-action gate opening
- SCREW-LOCK: the manual screw-lock with a red band provides a visual warning when the carabiner is unlocked
Specifications
Material(s): aluminum
Min. rope diameter: 7mm
Max. rope diameter: 13mm
Sheave diameter: 18mm
Maximum working load: 2 x 2 = 4kN
Efficiency: 85%
Major axis strength: 20kN
Minor axis strength: 8kN
Open gate strength: 7kN
